Technical specifications
System Connectivity - I/O
- Video Output: 4x DisplayPort 1.2 (Stage) (4096 x 2160 max); 1x DisplayPort 1.2 (GUI); Different VFC cards available*
- Video Input: 4x HD-SDI or 2 x 3G-SDI
- Video Sync: BNC Genlock
Media File Specifications
- Video Playback: .mov (anim, pjpg, DXV, Hap, Hap Q)
- Still Image Formats: .png, .jpeg, .bmp, .tiff, .tga
- 3D Mesh Format: .obj
- Audio File Formats: .mp3, .wav (44.1kHz, 16-bit, stereo)
- Audio RME Professional
- Analogue Audio: 2x Balanced XLR Output; 2x Balanced XLR Input; 1x 1/4" Headphones Jack
- Digital Audio: ADAT/SPDIF I/O
- MIDI: 1x In; 1x Out

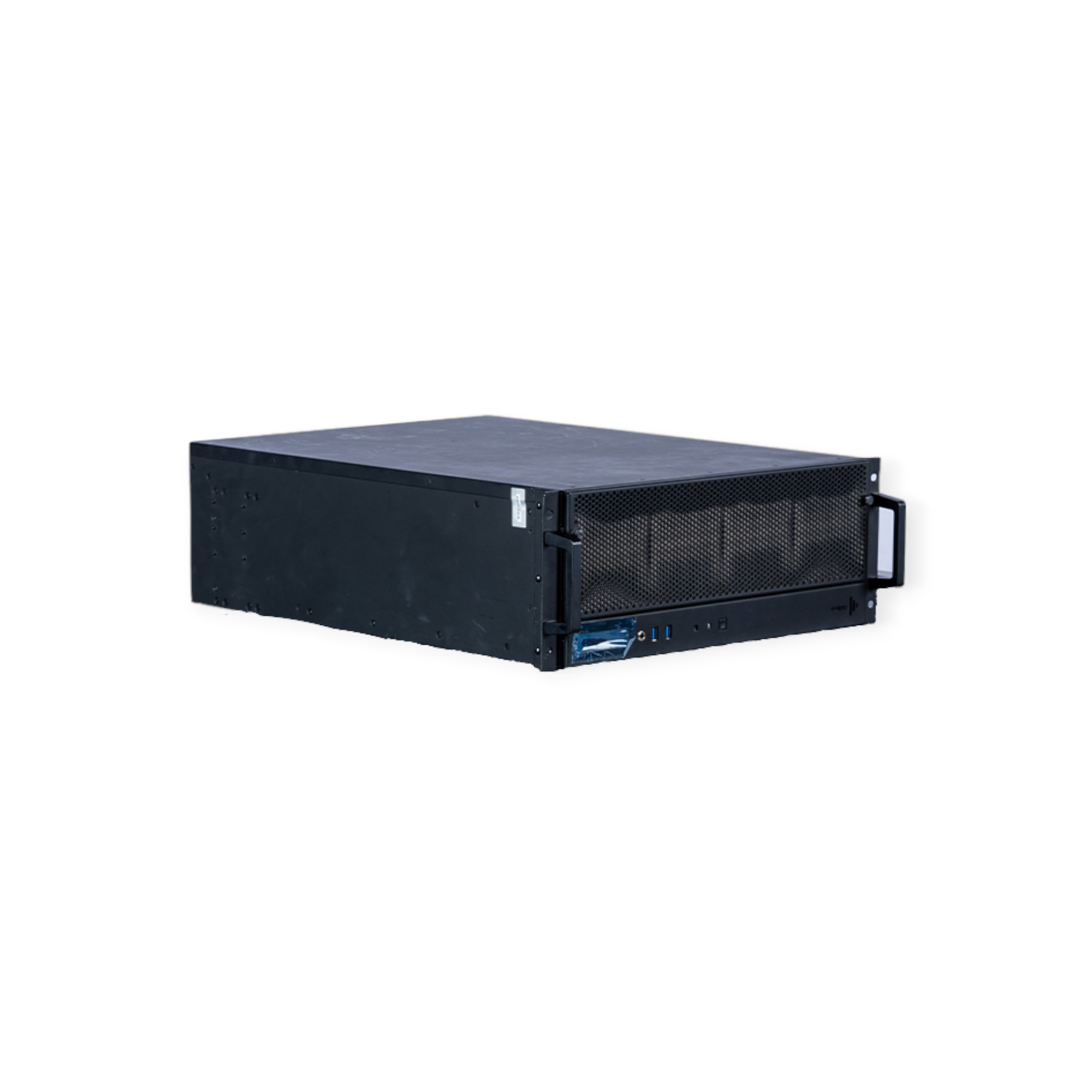

Physical Specifications
- Mounting System: 4U 19” rack mount
- Unite Dimensions: W: 445mm (17.52''); H: 178mm (7''); D: 593mm (23.35'')
- Unit Weight: 19.5 kg (36.5lbs)
- Unit & Rack Handles: 621mm (24.45'')
- Environmental Tolerances: Temperature: 5-35°C (40°-95°F); Humidity: 5%-95% (non-condensing); Altitude: 0-8850 ft (0-2700m)
Hardware Specifications
- CPU: 2x Xeon Hexa-Core 3.5Ghz
- Memory: 32GB DDR4 RAM
- Storage: 2x 80GB SSD (Internal System Drive, Restore Drive); 2TB Internal SSD
- Network: General Network: 1x Gigabit LAN; Artnet: 1x Gigabit LAN; Media Network: 2x 10 Gigabit LAN
- Data/Peripherals: 2 x USB 2.0, 3 x USB 3.0
- Voltage: 100-240V, 50-60Hz
- Power Consumption: 450W @ 110V (normal); 500W @ 110V (max)
Software Features
- Operating System: Windows 10 IoT Enterprise LTSB
